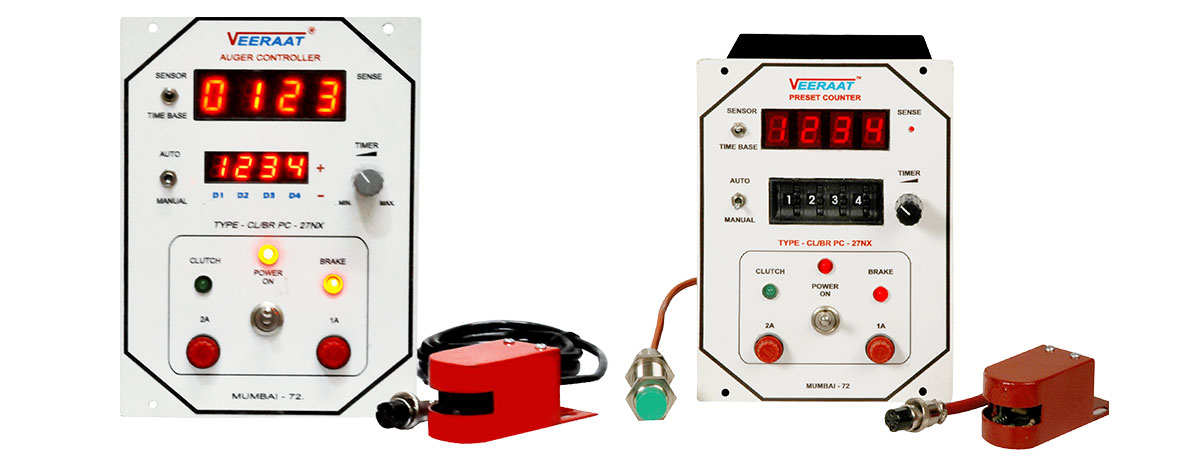

• Micro controller based.
• Dual 7 segment LED Display.
• Operating Mode: Sensor Based (Slot Sensor) / Time Base.
• Reset : Auto reset (Adjustable timer) / Proximity reset / Foot Switch.
• Setting: 4-digits (0 to 9999 counts).
• Set point setting: Feather touch switch.
• Short circuit protection on sensor terminal.
• Restart timing setting: 0.1 sec to 4 sec. (Analog).
• High voltage input to brake for Max. Accuracy.

Specifications :

› Front Fascia: 140w x 190h
› Controller Depth: 250
› Panel Cutout: 126w x 163h
› Mounting: 110w x 170h (4.2 x 4 holes)

• Supply:   Power: 240v AC (±10%), 50/60 Hz.


• Timer:    16 bit A/D Converter


• Range :    : 0.1 sec to 2.5 sec


• Reset: Power:    Auto / Manual (user selectable)


• Mode: Sensor / Time base (user selectable)


• inputs:

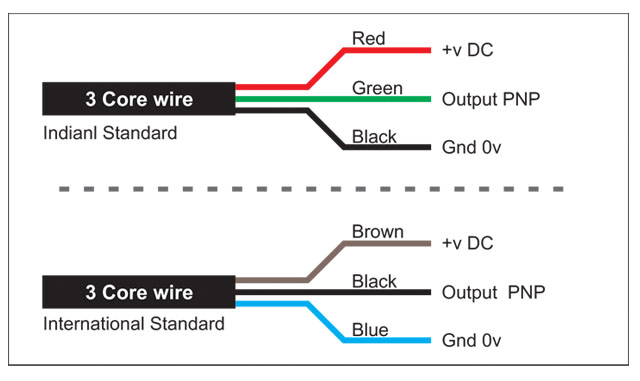

› Input1 (frequency: 2.5 kHz): PNP NO, 12v DC (Slot sensor / Proximity Switch / Encoder pulse input)
› Input2 (frequency: 1 kHz): PNP NO, 12v DC (Proximity / Micro switch / Foot switch) Note: Color mark Input or Extra input available on customer request.

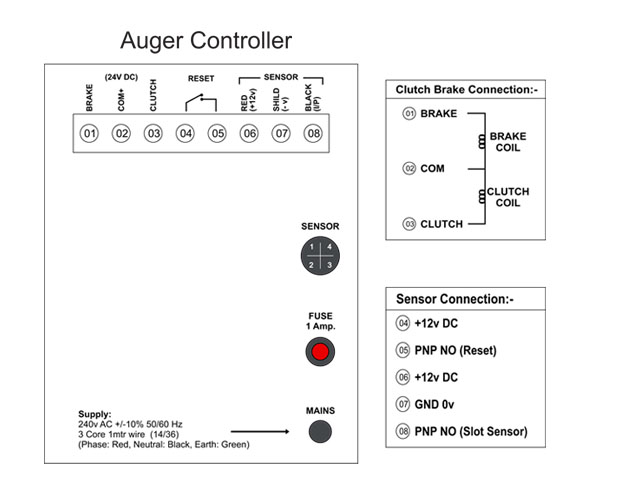

• Output:   Clutch & Brake: 24v DC, 3.5A Max.


• Specification



› Set Point Memory: Yes
› Reset: Auto / Manual reset / Reset at back.
› Count Direction: Up
