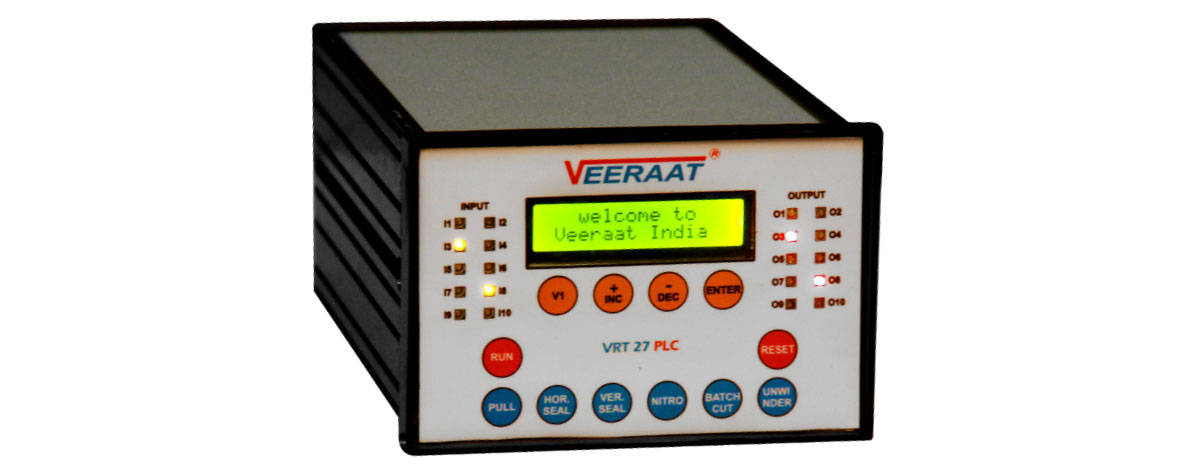

Cup & Auger Filler Machine Controllers

Cup & Auger Filler Machine Controllers

Specifications:

  • Power - 12VDC / 24VDC ,500mA
  • Outputs - 10 Active High Outputs.
  • Inputs - 10 Active High Inputs.
  • LED indicators for all I/O s on front panel.
  • Dimensions -(Width x Height x Depth) in mm- 144 x 96 x 200
Features:
  • Batch cut facility.
  • Unwinding operation.
  • Nitrogen flushing control.
  • Vertical sealing timing.
  • Horizontal sealing timing.
  • 12 keys membrane keypad
  • Encoder or Time based pulling.
  • Colour-mark (photo mark) detection.
  • Bagging related configurable timings.
  • Configured timings for varied operations
  • Long life, Zero maintenance performance.
  • All bagging related operations can be facilitated.
  • Easy low cost alternative for any standard PLC.
  • LCD display panel with operator user friendly keypad.
  • Can be used as a general purpose industrial controller.
  • Configurable timings for all bagging related operations.
  • Clutch Brake operation or AC drive based operation for paper pulling.
  • Front panel with process status I/O LEDs indications for easy fault finding
  • 16 x 2 lines Alfa-numerical LCD display with green / white back light

Cup filler type controller features:

  • Continuous disc or start/stop disc logic.
  • Configurable timings for all bagging related operations

Weigh filler type controller features:

  • 1-4 Head Linear weighing machines

Auger filler type controller features:

  • Auger slippage indication.
  • Time or encoder based auger rotation control.
  • Facility to change auger counts during run-time.
  • Clutch Brake operation or AC drive based operation.
