Colour Mark / I mark / Print mark /Photo cell Sensor

Model :Model: SH 27 91S / SH 27 12 NPN / SH 27 12 PNP / SH 27 24 NPN / SH 27 24 PNP

Specifications:

Operating Voltage: 230v AC

Sector of Typical Application: Winding Unwinding Systems, Vertical Form Fill Seal, Horizontal Flow Wrap, Tube Filling Machines Etc.

  • Micro controller based.
  • State of the art devices.
  • Polarity protection: Yes
  • Output Led Indication.

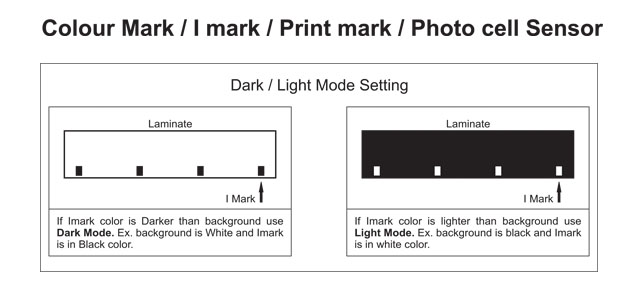

  • Dark Light User Selectable.
  • PNP / NPN Output.
  • 8 to 15 mm sensing range.
  • Analog gain setting.
  • Speed up to 1200 packages per min.
  • Operating Voltage: 12v / 24v DC.
  • Source LED: White (standard) / Parrot Green / Green, Blue / Red / Yellow.
Specifications :

  • Model: SH 27 91S

    • › This type of colour mark sensors are Generally used in Photo control unit of 110v or 230v Operating voltages, which are used in VFFS and Horizontal Flow wrap machines)

  • Model: SH 27 12 NPN

    • › Operating Voltage 12v DC
    › Output Type: NPN NO / NC (user selectable)

  • Model: SH 27 24 NPN

    • › Operating Voltage 24v DC
    › Output Type: NPN NO / NC (user selectable)

  • Model: SH 27 12 PNP

    • › Operating Voltage 12v DC
    › Output Type: PNP NO / NC (user selectable)

  • Model: SH 27 24 PNP

    • › Operating Voltage 24v DC
    › Output Type: PNP NO / NC (user selectable)

  • Model: SH 27

    • › Dimensions (mm): 90L x 35w x 65h
    › Mounting: 30mm Center (M6 x 2 holes)

    • Supply:   Power: 12v / 24v DC.

    • Gain Setting:    Analog (Single Turn Pot)

    • Output Load:

      • › PNP: 200mAmp
      › NPN: 200mAmp
