• In built 6-digit Product counter for counting the number of packets/pouches/products.
• Proximity sensor or eye mark sensors can be used for print inputs.
• Easy and quick installation on existing packaging machine with the specially designed brackets.
• Bipolar drive for optimum motor performance to increase production rate & smudge free printing operation.
• Ones all the parameters are set, there is no need to stop the process for printing as printing is on line and continuous.
• Automatically tracks the speed of packaging machine and varies it’s own speed according to the packaging machine speed.

Specifications :

• Roller Size:   300mm / 450mm / 600mm


• Printing Area:    Up to 200 mm x 35 mm with Single pad.


• Prints by:    Easily changeable flat Rubber/ Polymer stereos.


• Printing Speed:    300 impression/min.


• a) High speed:    10 to 30 mtrs/min. (for flow wrap m/c.)


• b) Slow speed:    0.1 to 10 mtrs/min. (for vertical FFS m/c.)


• Printing Medium:   Fast drying ink.


• Ink colors:   Black, Violet, Blue, Red, Green, White*


• Supply:   Power: 240v AC (±10%), 50/60 Hz.


• SpeedSetting:   Auto Cotrol

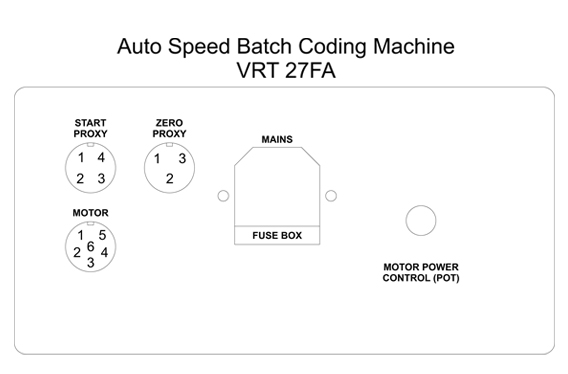

• Inputs:

› Input1 Start Sensor (frequency: 2.5 kHz): NPN NO, 12v DC (Proximity Switch)
› Input2 Zero Sensor (frequency: 2.5 kHz): NPN NO, 12v DC (Proximity Switch)

• Output:   Stepper Motor Current upto 1.5 Amps


• Specification



› Production Counter: Yes
› Production Counter Memory: Yes
› Short Protection: Yes
› Print Delay Timing: Yes
› Count Direction: Up
