Horizontal Photo Control Unit 230v AC

Model: : PEC 27 MRS 230 Horizontal

Horizontal Photo Control UnitMicro controller basedFeatures:

Operating Voltage: 230v AC

Sector of Typical Application: VFFS Machines and Horizontal flow wrap machines (Biscuit, Toast, Bread etc. Packing Machines)

  • Micro controller based.
  • Process status LEDs
  • Solid State outputs or Relay Output
  • 6 digit production counter.
  • Big Seven Segment LED displays.
  • Led Indication: Motor & Sensors.
  • Soft touch type keys on front panel.
  • Individual Analog based timer for Forward and Reverse Motor operation, for better time control on both forward and reverse motor corrections.
  • Short circuit protection on sensor terminal.
  • Operating in worth cases electrical condition.
Specifications :

  • Model: PEC 27 MRS 230

    • › Front Fascia: 192w x 96h
    › Controller Depth: 160
    › Panel Cutout: 186w x 92h
    › Mounting: Side Clamps
    Note: All dimensions are in mm.

    • Input Supply   Power: 230v AC (±10%), 50/60 Hz.

    • Dual Timers:    16 bit A/D Converter

    • Reverse:    : Range: 0.1 sec to 2 sec

    • inputs:

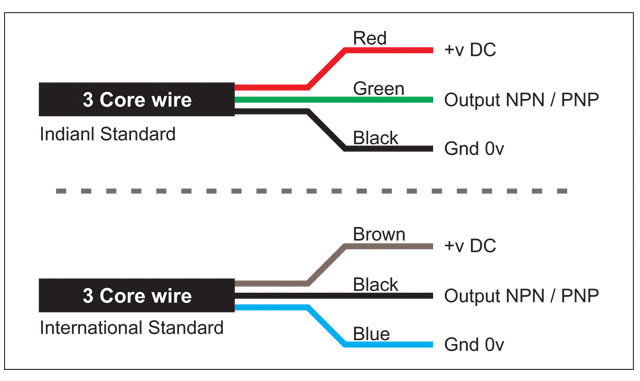

      • › Input1 (Forward): NPN NO, 12v DC (Proximity Switch / Micro switch)
      › Input2 (Reverse): NPN NO, 12v DC (Proximity Switch / Micro switch) › Input3 (I Mark): NPN NO, 12v DC (Color mark Sensor)

    • Output:  Relay / Solid State: 230v AC Motor, 120 watts max.

    • Specification

      • › Production counter memory: Yes
      › Count Direction: Up
