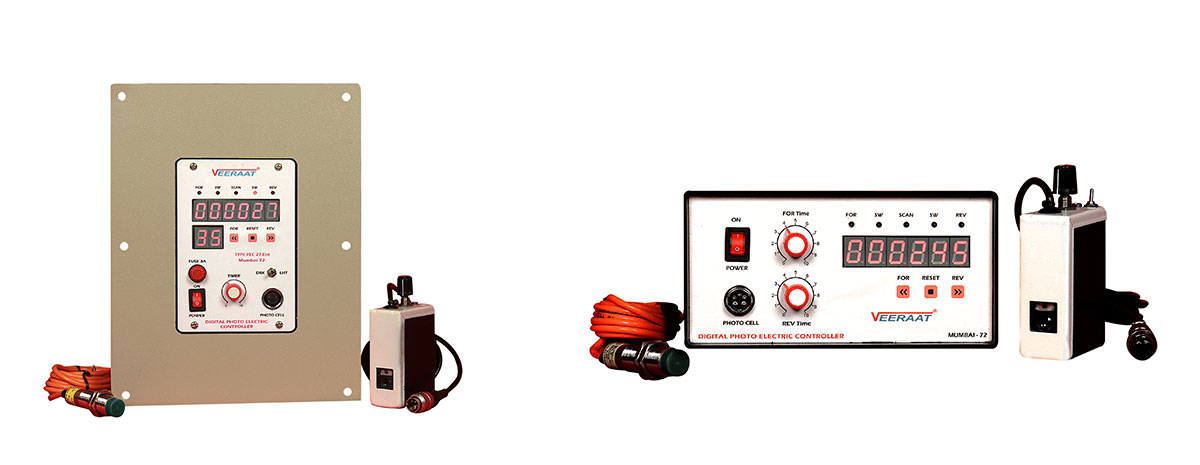

Model: PEC 27 Vertical

Model: PEC 27 Horizontal

• Type: Vertical Operating Voltage: 110 VAC
• Application: Vertical FFS M/c.
• Cut out size: 110 x 170 x 125 mm.

Features: Vertical 110v AC

• Micro controller based.
• Process status LEDs.
• Solid State outputs.
• 6 digit production counter
• Input Frequency : 2.5 khz max.
• Big Seven Segment LED displays.
• Led indication : Motor & Sensors.
• Soft touch type keys on front panel.
• Operating Voltage : 110v AC.
• Analog based timer with Digital Display for repeat accuracy better than 0.5%.
• Short Circuit Protection : Sensor Terminals.
• Operating in worth cases electrical condition.

• Type: Horizontal Operating Voltage: 230 VAC
• Application: Horizontal Flow Wrap M/c.
• Cut out size: 90 x 185 x 150 mm

Features: Horizontal 230v AC

• Micro controller based.
• Process status LEDs.
• Relay / Solid State outputs.
• 6 digit production counter
• Input Frequency : 3 khz max.
• Big Seven Segment LED displays.
• Led indication : Motor & Sensors.
• Soft touch type keys on front panel.
• Operating Voltage : 230v AC.
• Individual Analog based timers for Forward & Reversing Motor Directions for better Accuracy.
• Short Circuit Protection : Sensor Terminals.
• Operating in worth cases electrical condition
