• State of the art devices
• Micro controller based.
• Instant start / stop & reversal.
• Current chopping techniques.
• Led Indication: Motor & Sensors.
• Speed adjustable by potentiometer
• No effect of voltage fluctuation on speed.

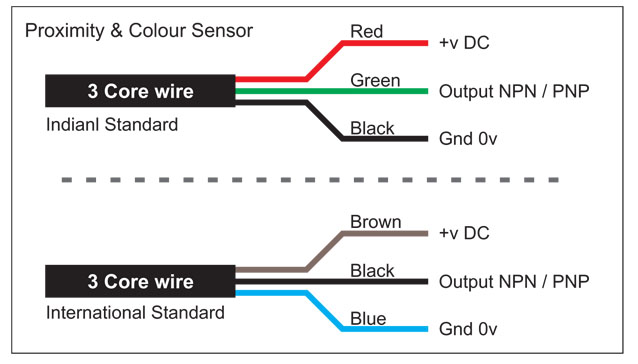

• Customer’s Choice NPN or PNP Type Sensor.
• Versatile interface to suit different controllers.
• Motors possible to connect 4, 6 or 8 lead motors.
• Can provide holding torque in stopped condition.
• Speeds up to 700 RPM (or more) possible within specific framework of application.
• Short circuit protection on sensor terminal.
• Operating in worth cases electrical condition.

Stepper motors are characterized by their unique ability to stop instantly and accurately at a given point. Not only that, it can instantly reverse its direction of rotation.

Specifications :

› Front Fascia: 96w x 192h
› Controller Depth: 200
› Panel Cutout: 92w x 186h
› Mounting: Side Clamps
Note: All dimensions are in mm.

• RPM (Analog):   16 bit ADC


• Range:    40 to 400 RPM

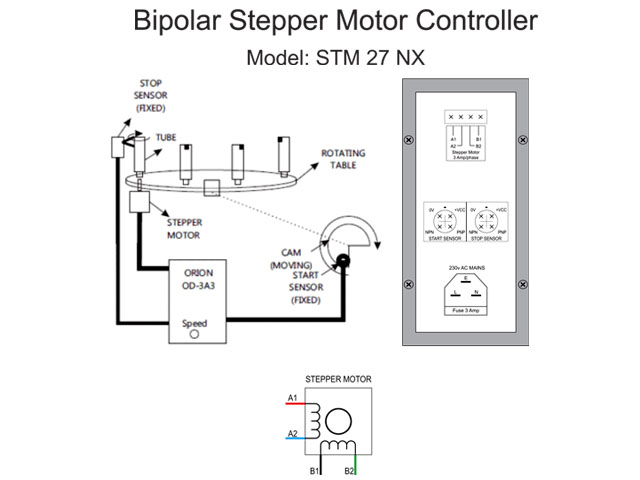

• inputs:

› Input1 (Start): NPN NO / PNP NO, 24v DC (User Selectable)
› Input2 (Stop): NPN NO / PNP NO, 24v DC (User Selectable) › Input1 (Start): Proximity Switch › Input2 (Stop): Color mark Sensor

• Output Load:    Drives Stepper Motor with current up to 3.3 Amps / Phase


• Specification



› Current Setting: Yes
› Direction Control: Yes
