• Micro controller based.
• Process status LEDs
• Solid State outputs or Relay Output
• 6 digit production counter.
• Big Seven Segment LED displays.
• Led Indication: Motor & Sensors.
• Soft touch type keys on front panel.
• Analog based timer with 2 digits digital Display, repeat accuracy better than 0.5%.
• Short circuit protection on sensor terminal.
• Operating in worth cases electrical condition.

Specifications :

› Front Fascia: 192w x 96h
› Controller Depth: 125
› Panel Cutout: 110w x 165h
› Mounting: 145w x 185h (4.2 x 4 holes)
Note: All dimensions are in mm.

• Supply   Power: 230v AC (±10%), 50/60 Hz.


• Dual Timers:    16 bit A/D Converter


• Reverse:    : Range: 0.1 sec to 2 sec, 2 digit seven segment display (0 to 99)

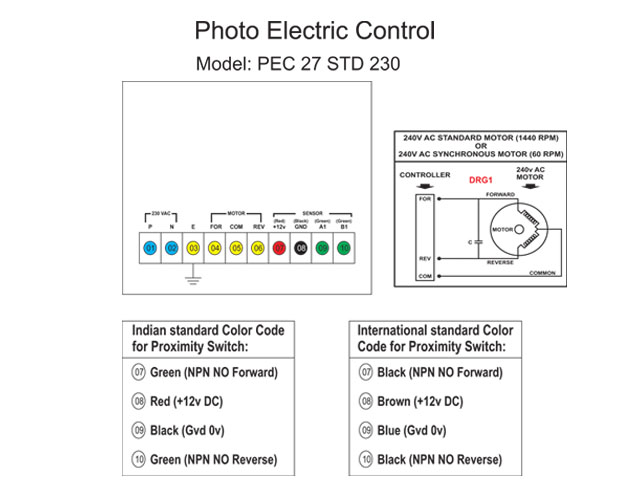

• inputs:

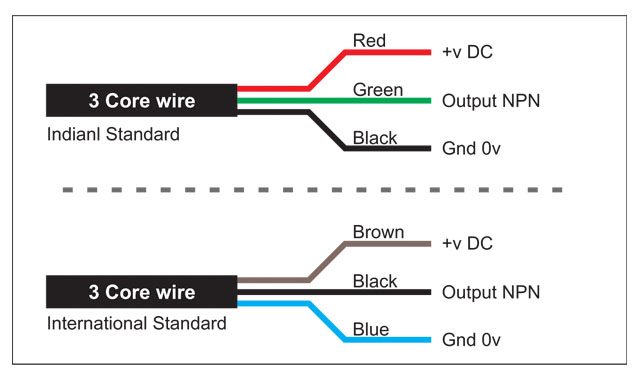

› Input1 (Forward): NPN NO, 12v DC (Proximity Switch / Micro switch)
› Input2 (Reverse): NPN NO, 12v DC (Proximity Switch / Micro switch)
› Input3 (I Mark): NPN NO, 12v DC (Color mark Sensor)

• Output:  Relay / Solid State: 230v AC Motor, 120 watts max


• Specification



› Production counter memory: Yes
› Count Direction: Up
